Discussion Starter · #1 · (Edited)
Hello everybody !

the HVAC climate control panel of my Cougar does not works (is the LCD european style, see picture below).

The last weeks, the HVAC control panel worked perfectly in the mornings (cold exterior temperature), but in the afternoons after several hours under the sun, the HVAC control panel does not worked.

Finally this week, the HVAC control panel does not works anymore.


When I turn the knobs and press the buttons, it does nothing:
  • the LCD screen show nothing.
  • the illumination of the LCD screen is always off (even if I turn on the headlights).
  • the blower does nothing.
  • the AC clutch compressor not activates.


I have checked (including a wiggle test) all the fuses of the two fusebox (specially the fuses number 23, 34 and 37 related to heater blower and AC system) and is all Ok.

I have checked also the blue color relay R3 (related to AC) and replaced it with a new one. The relay works ok (activates when I turn on ignition switch)

I have do a wiggle test of the rear connectors and cables of the HVAC control panel, but still not works.


Please, has anyone had the same problem?
Any help will be appreciated.

Thanks in advance and sorry for my bad English.



My car is a 1998 Ford Cougar 2.5 manual transmission.
This is my HVAC control panel:





SOLVED !!!

I found the problem doing a wiggle test to the cables under the dashboard.

The problem was a cable connector in the Fuse box under the steering wheel.

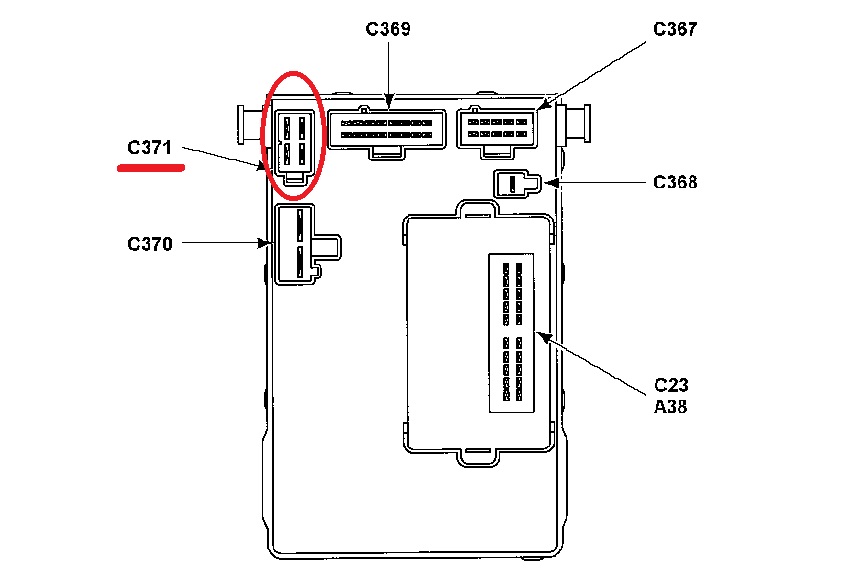

The connector have the reference C371 in the Ford TIS wiring diagram.

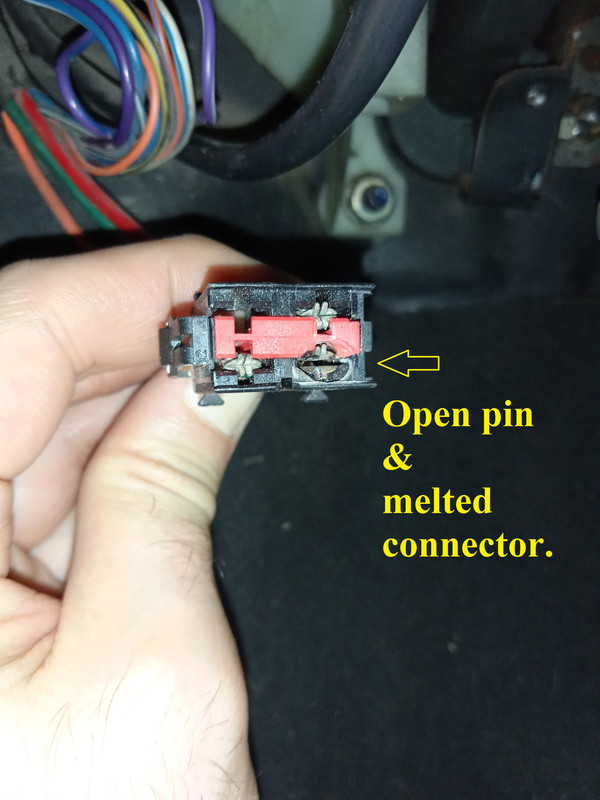

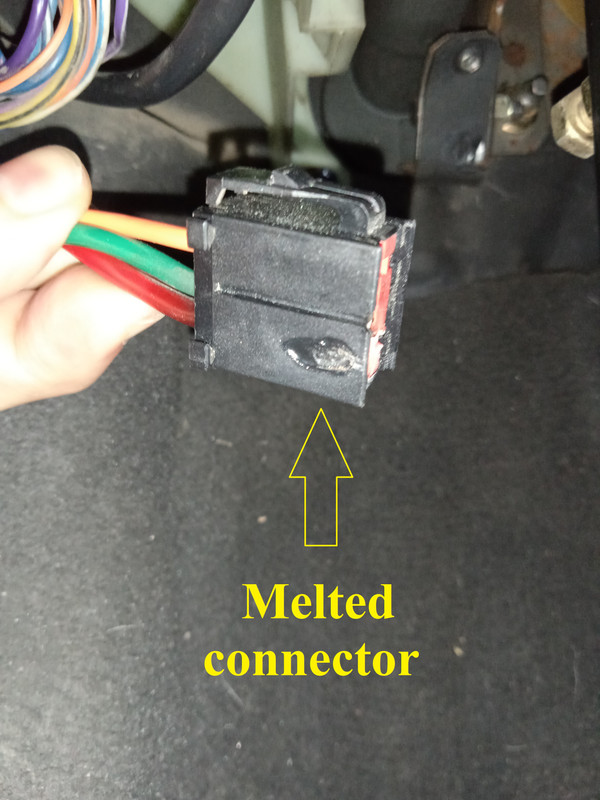

In the following pictures you can see a pin open and the connector melted.









This have cuased poor electrical contact and finally the pin open and no power to the HVAC Climate control panel.

As I have read in other forums, this is common fault in the Cougar and the Contour (Mondeo), and most cars have this connector melted.
You can read about this same problem in this Contour forum:
https://www.contour.org/forums/thre...use-box-melting-from-the-heater-blower.53810/


Luckly this connector is still available new.

I bought a new connector, replaced and the Climate control works again.

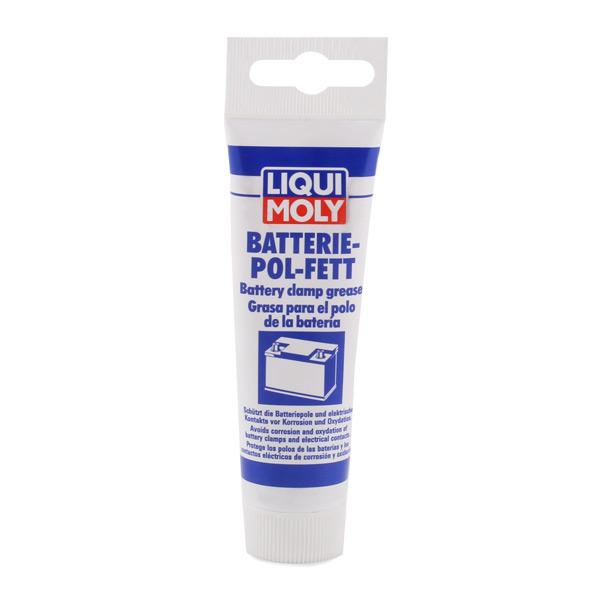

I also have added grease for electrical contacts to the pins (Liqui Moly 3140).
Battery Clamp Grease

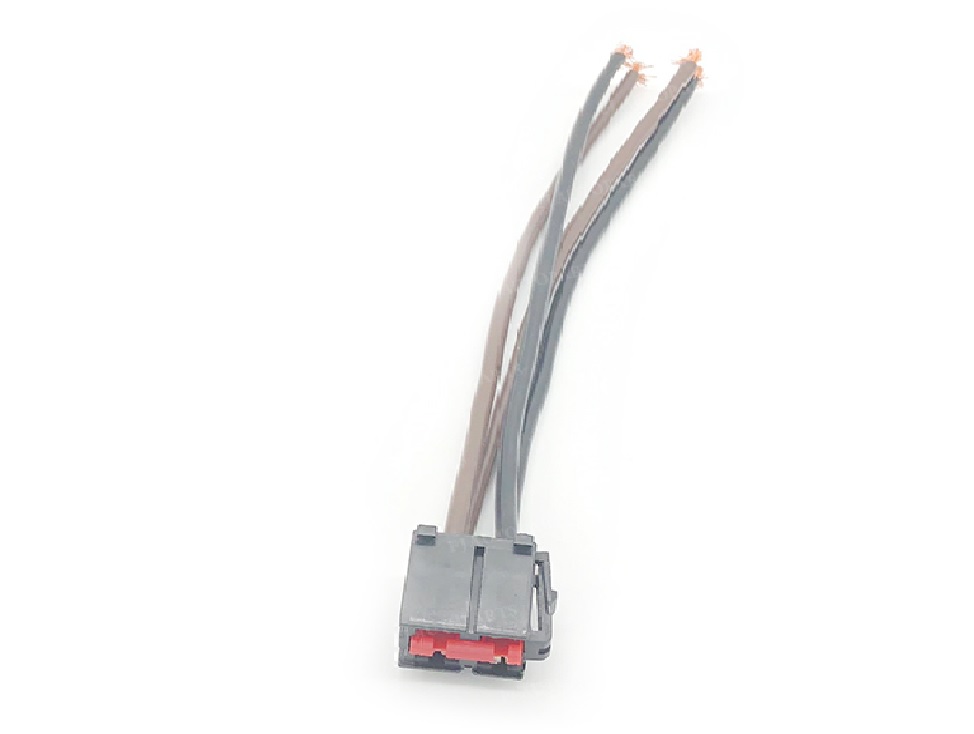

You can find the connector searching the following words in eBay or Aliexpress:
"Heater Blower Fan Resistor Wiring Harness Connector Ford"

Here some links to buy it:
Parlex Prs 4K002 Blower Motor Resistor Connector Ford Transit Connect 3U2Z14S411PGA WPT480 54137FG

Parlex Prs 4K002 4 Pin Connector | One Car Part

Resistencia Ventilador Calentador cableado arnés ajusta Ford Focus Transit Conectar rthr 2 wirfo | eBay

https://es.aliexpress.com/item/1005001779884938.html

https://es.aliexpress.com/item/32914832426.html

https://es.aliexpress.com/item/1005001779925847.html

This are the part numbers of the connector I have found:
MOTORCRAFT: WPT-480
STANDARD MOTOR: S-719
FORD OE: 977632
ACDELCO: 88860548 / PT1993
ACDELCO PROFESSIONAL: PT1993
ACDELCO PROFESSIONAL CANADA: PT1993
AIRTEX AUTOMOTIVE DIVISION: 1P1403 / 1P1408
AIRTEX ENG. MGMT. SYSTEMS: 1P1247 / 1P1403
AUTOZONE/AEM: 1P1247
AUTOZONE/DURALAST-WELLS: 615 / 771
AUTOZONE/MOTORCRAFT: WPT-480 / WPT480
CARQUEST: 57-4694 / 57-5182 / 57-5187 / 574694 / 575182 / 575187
CARQUEST/STANDARD MOTOR PRODS.: 574694 / S719
CARQUEST/WELLS: 575182
DORMAN: 973-303 / 973303
DORMAN - TECHOICE: 973-303 / 973303
KEMPARTS: 350363
NAPA: EC158
NAPA/ECHLIN PARTS-ECH: EC158
NIEHOFF: PS37501
WELLS: 57-4694 / 574694 / 771 / 776







I hope this can help to someone.
Best regards
and thank you very much for all the replies.


· Registered
Joined
·
2,881 Posts
Check the european ford cougar forum. That control panel wasn't ever an option here and the cougar doesnt even exist for the 1998 model year here.

  • Like
Reactions: fordV6cougar

· Premium Member
Joined
·
4,888 Posts
I think the UK forum has some ownership issues that have made joining difficult, this forum is probably the best maintained right now.
Most of us are in North America so have little or no experience with that panel.

It honestly sounds like an electronics failure though. You made need to replace the panel. You might try opening it up to look for loose or broken connections, but I would be surprised if you found it.

  • Like
Reactions: fordV6cougar

· Registered
Joined
·
2,881 Posts
I cant tell if the numbers still show up and just dont illuminate. If thats the case could there be a bulb for the LCD that burnt out like with the LCD screens in the gauges?

  • Like
Reactions: fordV6cougar

· Registered
1998 V6 MTX Ebony Black Wild at Heart Trim
Joined
·
141 Posts
The LCD Display doesn't illuminate until its turned on thats normal.
If it doesn't turn on when you use the right dial its either the Unit that has died or some problem with the power being supplied to it.
Best way to test is taking the unit out and using a different one if you are able to do that.
If it still doesn't work... well its either some fuse or wiring problem. Haven't heard of them dying at all so I can't really suggest anything other than standard diagnosis procedures.


· Registered
Joined
·
377 Posts
Hello everybody !

the HVAC control panel of my Cougar does not works (is the LCD european style, see picture below).

The last weeks, the HVAC control panel worked perfectly in the mornings (cold exterior temperature), but in the afternoons after several hours under the sun, the HVAC control panel does not worked.

Finally this week, the HVAC control panel does not works anymore.


When I turn the knobs and press the buttons, it does nothing:
  • the LCD screen show nothing.
  • the illumination of the LCD screen is always off (even if I turn on the headlights).
  • the blower does nothing.
  • the AC clutch compressor not activates.


I have checked (including a wiggle test) all the fuses of the two fusebox (specially the fuses number 23, 34 and 37 related to heater blower and AC system) and is all Ok.

I have checked also the blue color relay R3 (related to AC) and replaced it with a new one. The relay works ok (activates when I turn on ignition switch)

I have do a wiggle test of the rear connectors and cables of the HVAC control panel, but still not works.


Please, has anyone had the same problem?
Any help will be appreciated.

Thanks in advance and sorry for my bad English.



My car is a 1998 Ford Cougar 2.5 manual transmission.
This is my HVAC control panel:

your options as follows.
1. You may need to replace it as the lcd sometimes fail.
2. Pull unit out and unplug and re plug it back in. Might be a loose or corroded connection.
3. The light bulb might be out, shine a flash light into it to see if you can see the digital read out. If not the lcd is shot and refer to 1.
4. Check your wiring as some connectors might have come loose or corroded or broke. Check the fuse panel under the dash. LHD is under the Left side of the dash. Not sure on the RHD vehicles.
Good luck.


Sent from my iPhone using Tapatalk


· Registered
Joined
·
15 Posts
Discussion Starter · #8 · (Edited)
Thank you very much for all the replies.

SOLVED !!!

I found the problem doing a wiggle test to the cables under the dashboard.

The problem was a cable connector in the Fuse box under the steering wheel.

The connector have the reference C371 in the Ford TIS wiring diagram.











In the following pictures you can see a pin open and the connector melted.






This have cuased poor electrical contact and finally the pin open and no power to the HVAC Climate control panel.

As I have read in other forums, this is common fault in the Cougar and the Contour (Mondeo), and most cars have this connector melted.
You can read about this same problem in this Contour forum:
https://www.contour.org/forums/thre...use-box-melting-from-the-heater-blower.53810/


Luckly this connector is still available new.

I bought a new connector, replaced and the Climate control works again.

I also have added grease for electrical contacts to the pins (Liqui Moly 3140).
Battery Clamp Grease




You can find the connector searching the following words in eBay or Aliexpress:
"Heater Blower Fan Resistor Wiring Harness Connector Ford"

Here some links to buy it:
Parlex Prs 4K002 Blower Motor Resistor Connector Ford Transit Connect 3U2Z14S411PGA WPT480 54137FG

Parlex Prs 4K002 4 Pin Connector | One Car Part

Resistencia Ventilador Calentador cableado arnés ajusta Ford Focus Transit Conectar rthr 2 wirfo | eBay

https://es.aliexpress.com/item/1005001779884938.html

https://es.aliexpress.com/item/32914832426.html

https://es.aliexpress.com/item/1005001779925847.html

This are the part numbers of the connector I have found:
MOTORCRAFT: WPT-480
STANDARD MOTOR: S-719
FORD OE: 977632
ACDELCO: 88860548 / PT1993
ACDELCO PROFESSIONAL: PT1993
ACDELCO PROFESSIONAL CANADA: PT1993
AIRTEX AUTOMOTIVE DIVISION: 1P1403 / 1P1408
AIRTEX ENG. MGMT. SYSTEMS: 1P1247 / 1P1403
AUTOZONE/AEM: 1P1247
AUTOZONE/DURALAST-WELLS: 615 / 771
AUTOZONE/MOTORCRAFT: WPT-480 / WPT480
CARQUEST: 57-4694 / 57-5182 / 57-5187 / 574694 / 575182 / 575187
CARQUEST/STANDARD MOTOR PRODS.: 574694 / S719
CARQUEST/WELLS: 575182
DORMAN: 973-303 / 973303
DORMAN - TECHOICE: 973-303 / 973303
KEMPARTS: 350363
NAPA: EC158
NAPA/ECHLIN PARTS-ECH: EC158
NIEHOFF: PS37501
WELLS: 57-4694 / 574694 / 771 / 776







I hope this can help to someone.
Best regards
and thank you very much for all the replies.
